View NPH's industrial ceramic infrared emitters technical manual for additional information including radiant emission patterns for ceramic infrared emitters/heaters, Emissivity, Stefan-Boltzmann's Law, Infrared Spectrum, Planck's Law, Wein's Law, Spectral Absorption Curves and much more.
Beginners Guide/Review To What is Infrared Energy?
When infrared energy strikes an object it may be absorbed, transmitted, or reflected from the surface. The sum of the amount of energy absorbed, transmitted, and reflected must equal 100% of the total incident energy. An object is called a "blackbody" if it absorbs (or emits) 100% of incident infrared radiation.
Throughout the years many different forms of infrared heat sources have been developed. Some of the more familiar forms seen today are metal sheathed tubular heaters, quartz tubes, quartz lamps, gas-fired catalytic, flat faced panels, and ceramic emitters. Each source has its own distinctive set of properties. Go to NPH's ceramic infrared emitters technical manual for information on the properties for the above sources. This includes how efficient each of the above sources is, there physical strength, maximum temperature, heat up and cool down times and color sensitivity.
Our ceramic infrared heaters (emitters) are manufactured with three basic emitter faces: Concave, Flat and Convex. These emitter face styles will result in the specific radiant emission pattern as shown in our "Technical Letters" section below. Look for our ceramic infrared heaters technical manual below. The concave surface will emit a concentrated radiant pattern which is highly effective when zone heating is desired as well as radiant heating in general. Flat surface emitters will produce a uniform pattern for even heating at a close proximity between the emitter and the target being heated. Finally, the convex shaped emitter gives off a wide area pattern which is desirable in comfort heating or other applications that require a dispersed radiant emission pattern.
These heaters are durable, splash-proof and have a non-corrosive finish. Maximum temperature output of up to
1292*F (700*C). Estimated life of 10,000 hours with one (1) year warranty.
Please scroll down for Infrared Energy Guide, Specifications, Applications Guide, Technical Letters and Related Industrial Ceramic Infrared Heaters/Emitters Products.
What Is Infrared Energy? What Are Infrared Waves? Review:
Infrared radiation is part of a broad electromagnetic spectrum. The relationship between electromagnetic radiation is as follows:
Electromagnetic Radiation Chart: The Visible Spectrum:
Electromagnetic Radiation-The Visible Spectrum
Note that 1 micron is a unit of length equal to 1 millionth of a meter. A nanometer is also a unit of length equal to 1 billionth of a meter.
Electromagnetic Spectrum: Infrared Energy & Infrared Waves?
The Electromagnetic Spectrum & Infrared (IR) Wavelengths Shown In Lengths of Nanometers
The electromagnetic spectrum includes the entire range of radio waves, infrared radiation, visible light, ultra violet light, X-rays. and Gamma Rays. See detailed EMS pictorial chart below showing shorter and longer EMS wavelengths, real life photo comparison of wavelength lengths including radio, infrared, visible, ultraviolet and gamma rays frequencies. Also depicted are the sources like power lines, AM radio, mobile phones, radiant heaters, x-ray machines, the sun and radioactive sources etc. generating them. In addition the EMS pictorial chart shows the energy of one photon ( in electron volts) for all the various EMS wave lengths indicating low energies with longer wavelengths and higher energies with shorter wavelengths.
Range Of Waves for The Electromagnetic Spectrum
Curing
Drying
Heating
Cooking
Saunas
Within each of these major categories are literally hundreds of specific applications, and the list keeps growing as technology develops.
Industrial Ceramic Infrared Heaters: Specifications, Installation,
Maintenance and Operation Guide, Technical Letters & Tips:
- Thermoforming
- Composites
- Packaging
- Automotive
- Medical
- Electronics
- Mining
- Mold Heating and Pre-Heating
- Non Contact Drying
- Food Warming
- Paint Drying
QCE- Quarter Curved Element With T/C-K (60 mm x 55 mm x34 mm)
FTE-Full Trough Emitter (245 mm x 60 mm x 31 mm) -120V/240V
FTE-Full Trough Emitter-(245 mm x 60 mm x 31 mm) -120V/240V
HTE-half Trough Heater (122mm x 60mm x 31) -120V/240V
Ceramic Infrared Heater/Emitter with Type K T/C
-QTE-Quarter Trough Emitter, Ceramic Infrared Heater (60 mm x 60 mm x31 mm)
-FTE-Full Trough Emitter-Black
FFEH-Full Flat Ceramic Heater Element-Hollow -(245 mm x 60 mm x 36.5 mm)
HFEH-Half Flat Ceramic Heater Element-Hollow - 122mm x 60mm x 36.5mm
QFEH-Quarter Flat Ceramic Heater Element-Hollow - 60mm x 60mm x 36.5mm
FFE-Full Flat Ceramic Heater Element-120V/240V -245mm x 60mm x 24mm
HFE-Half Flat Emitter- 120V/240V -122mm x 60mm x 24mm
SFSE-Square Flat Ceramic Infrared Heaters-120/240V -22mm x 122mm x 24mm
QFE-Quarter Flat Ceramic Infrared Heater Element -60mm x 60mm x 24 mm
Ceramic Infrared Bulbs/Emitters-Various Sizes
ESER-Ceramic Infrared Bulb
Bulb Reflector-For Ceramic Infrared Edison Bulbs
ESEXL-Ceramic Infrared Bulbs-Yellow
ESES-Ceramic Bub Emitters
-QQE-Quarter Quartz ElementWith (62.5 x 62.5 x 22 mm, 120/240V)
-QQE-Quarter Quartz Element With TCK(62.5 x 62.5 x 22 mm, 120/240V)
Ceramic terminal Blocks-!, 2,3 and 4 Poles
Ceramic Infrared Bulb Holder

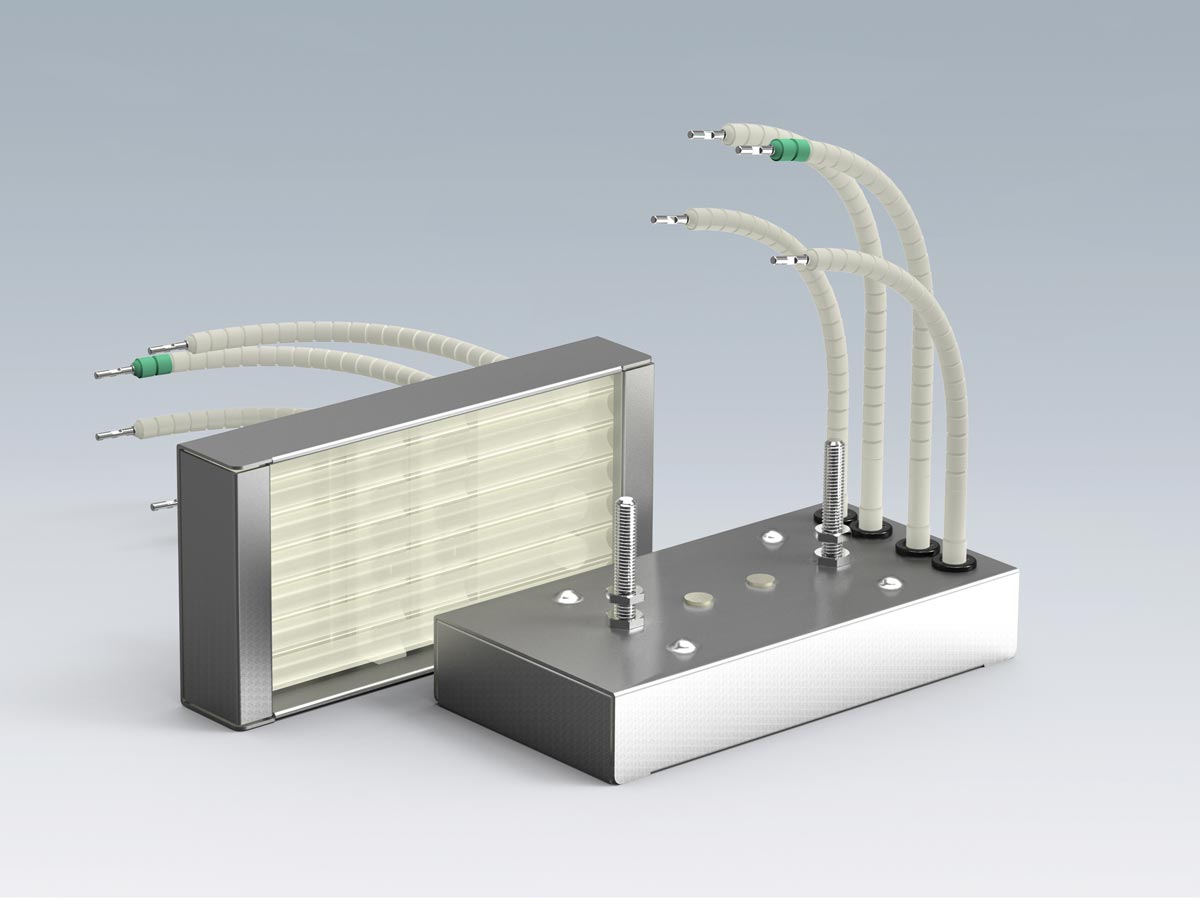

-HQE-Half Quartz Emitter
